Disaster recovery

To successfully recover a computer that won't boot, it is first necessary to have a complete Retrospect backup of that computer's boot volume, as well as any other disks that you want to restore. In addition, you will need to have access to the Backup Set storage media containing the backup, as well as the Catalog file that matches the Backup Set. A comprehensive backup strategy should include making copies of Retrospect's Catalog files onto separate media, such as a network volume or another computer.

If your system does not boot, you will need to boot the computer from a Retrospect Emergency Recovery Disc and perform a complete restore.

Please note that with modern Windows operating system versions, live restores are not a valid restore option for full system recovery.

For information about disaster recovery with Retrospect Solo, see Disaster Recovery with Retrospect Solo.

Creating a Retrospect Emergency Recovery Disc

The Disaster Recovery wizard will help you create an ISO image that can be burned onto a disc and used to boot your computer and restore it to a previous state in the event of a disaster, such as a hardware (e.g. hard drive) failure. In order to fully protect your system and the programs and data that reside on it, it is strongly recommended that you follow the steps below to create a bootable disc as soon as possible.

Before you create an ISO image, make sure you have the following items:

  • The Microsoft Windows Assessment and Deployment Kit (Windows ADK) installed on the computer where you will be running the Disaster Recovery wizard. Retrospect will give you the option to download the Windows ADK during the process.
  • Any drivers or packages (i.e. package.cab) that you would like to add to the ISO image should be placed in the following directory before creating the ISO image.
  • <retrospect application>/drsupp/drivers
  • A blank optical disc

To create a bootable disc:

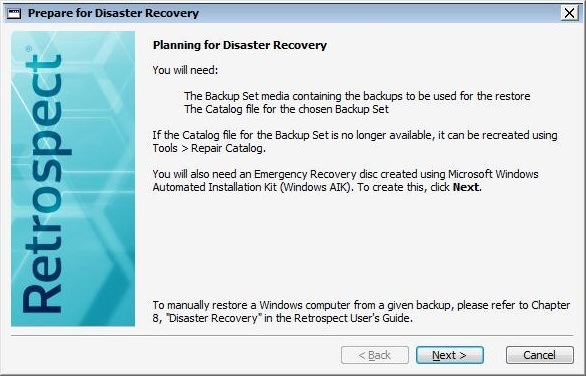

  1. From the Retrospect navigation bar, go to Backup > Disaster Recovery.
  2. addendum_rug-7.jpg
  3. Click Next.

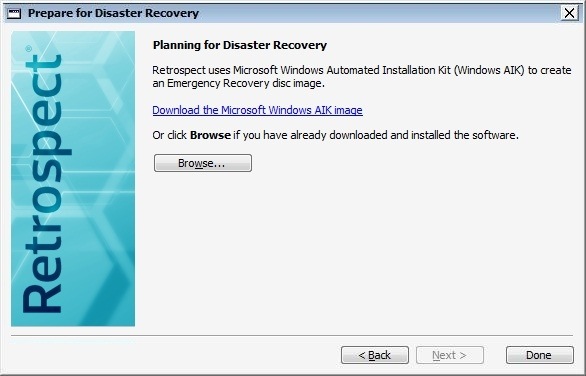

  4. You will then be asked for the Windows ADK software. Retrospect uses the ADK to create an Emergency Recovery Disc.

  5. Click Download the Microsoft Windows ADK image link, or click Browse... if you have already downloaded and installed the software.
  6. addendum_rug-8.jpg
  7. To locate the installed Windows ADK software, browse to the appropriate folder, then click Open. For the current Windows 10 ADK. the path needed by Retrospect is "Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Windows Preinstallation Environment". Navigating to the parent folder ("Assessment and Deployment Kit") and selecting "Windows Preinstallation Environment" to open fails with an error saying the copype.cmd file isn't there.

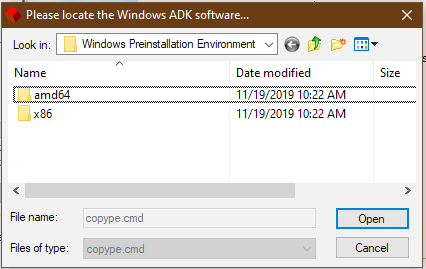

  8. Win dr adk location

    You will then be asked to confirm the location of the Disaster Recovery CD-R or USB image file.

  9. Confirm the default location by clicking Next, or click Browse... to specify an alternate location or select the USB option.

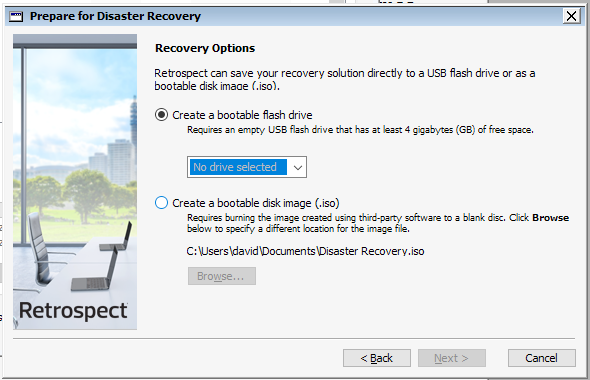

  10. Win dr usb

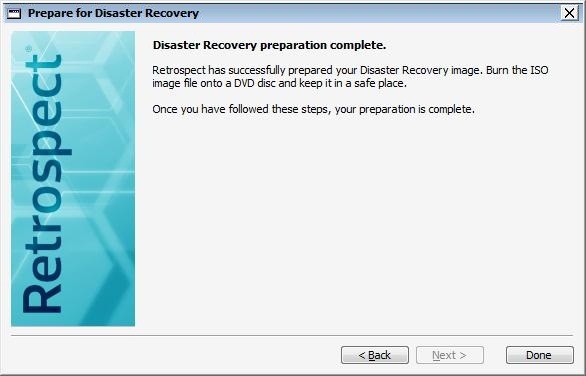

    The Disaster Recovery preparation should now be complete.

  11. Burn the ISO image file onto an optical disc, and store it in a safe place. Or use the USB drive created.

Note: If you received any errors during the creation of the Disaster Recovery image (e.g. not enough disk space for the image), click Open Log to view the Retrospect Operations log file.

Using the Retrospect Emergency Recovery Disc

Once a Windows computer has been booted from the Retrospect Emergency Recovery Disc, its hard disk drives can be partitioned and formatted, and it can be restored either locally, by using the Retrospect application with connected storage media containing the backup, or from a Retrospect server on the network via the Retrospect Client software.

Note: The Retrospect Emergency Restore Disc and the Retrospect restore process are designed to restore to hardware similar to that from which the backup was made, such as when a hard disk drive is replaced, not when the destination computer is completely different from the source computer.

The Retrospect Dissimilar Hardware Restore add-on makes it possible to perform a complete restore to different hardware, such as when replacing a failed or lost computer with one from a different manufacturer. See Making your system bootable on different hardware for more information.

Planning ahead

To successfully recover a computer that won’t boot, it is first necessary to have a complete Retrospect backup of that computer’s boot volume, as well as any other disks that you want to restore. In addition, you will need to have access to the Backup Set storage media containing the backup, as well as the Catalog file that matches the Backup Set. A comprehensive backup strategy should include making copies of Retrospect’s Catalog files onto separate media, such as a network volume or another computer.

Note: If you do not have a copy of the Backup Set’s Catalog file, it can be recreated from the media, though this will increase the length of time required to complete the restore.

Note: The physical target hard disk drive must be the same size or larger than the physical drive being replaced. This is necessary to ensure the proper restoration of the necessary hidden partitions, such as a Recovery Partition and the EFI System Partition, that were present on the source disk.

Getting started

If the computer you are recovering from a non-bootable state is the same computer that runs Retrospect, then you will be restoring locally, using the Retrospect application. If the computer you are recovering is normally backed up as a client to another computer on the network running the Retrospect application, then you will be restoring using the Retrospect Client method.

Insert the Retrospect Emergency Recovery Disc in the optical drive of the computer to be restored, power it on and boot from the disc.

Note: You may need to adjust the boot order in your computer’s BIOS settings to boot from a disc. Refer to the documentation for your specific computer model for instructions on how to change the BIOS settings during the boot process.

Once you’ve booted from the Retrospect Emergency Recovery Disc and agreed to the legal notifications, you will be presented with the home screen of the Emergency Recovery wizard.


This screen provides access to all the tools needed to recover your computer. From here, you can partition and format your hard disk drive, install drivers for components required to access the network or storage devices, and map a network drive. Once the environment is configured with the aforementioned tools, you can choose to restore locally using the Retrospect application or as a client from a Retrospect server on the network.

Setting up your hard disk drive for recovery

Retrospect Disaster Recovery is intended for Windows-based computers and is restricted to OSes and file systems supported by Windows ADK. Refer to the following table for further examples of what is supported:

Action

Supported in this version?

Basic partitioning

Yes

Dynamic partitioning

No

Creating GUID partitions

No

Creating and deleting partitions

Yes

Resizing partitions

No

To partition and format a hard disk drive:

  1. Click Setup my hard drive before restoring from the home screen of the Emergency Recovery wizard.


    Note: A drive must have at least one active partition before recovery can take place.

    The main hard drive setup screen appears.


  2. Select a disk or partition from the list on the left hand side of the dialog, and make your selection from the options on the right.

    The options to the right will change depending on which disk or partition you have selected on the left hand side of the dialog.

    Warning: Partitioning or formatting a hard disk destroys data stored on the disk. Proceed only if you are certain that the data on the drive has been properly backed up.

    Warning: If the drive that are restoring had a hidden Recovery Partition, the Retrospect Emergency Recovery process will recreate the exact partitioning scheme that was present when the backup being restored was originally created. This process will destroy all data present on the drive.

Loading drivers

If the computer being recovered has a network adapter or storage host bus adapter that isn’t recognized by the Retrospect Emergency Recovery system and that must be used in order to perform the recovery, it may be necessary to load a Windows driver for that adapter.

To install a driver:

  1. Make sure that the driver is stored on media that is accessible by this computer.
  2. Note: The driver should be located either on the network, an optical disk (the Retrospect Emergency Recovery Disc loads into RAM, so it can be safely ejected without affecting the recovery process), or even a USB flash drive.

  3. Click on Load drivers for network or storage adapters from the home screen of the Emergency Recovery wizard.
  4. addendum_rug-24.jpg

    A Windows file browser dialog appears.

  5. Browse to the location of the .inf file, then install.

Mapping a network drive

If you need to access a network share to complete the recovery process, a wizard will allow you to type a path and drive letter to map the volume to.

To map a network drive:

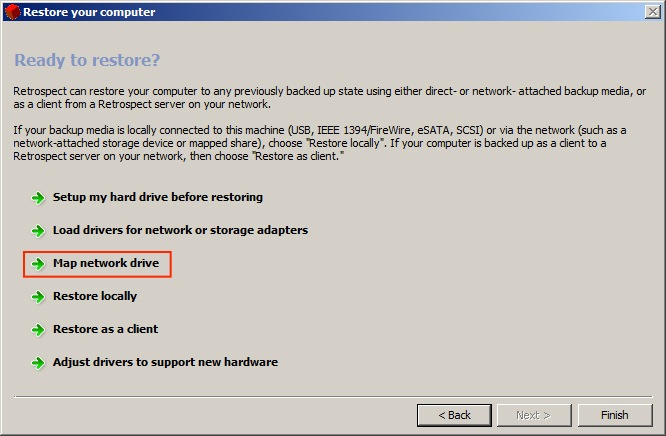

  1. Click Map network drive from the home screen of the Emergency Recovery wizard.
  2. addendum_rug-25.jpg

    The Map Network Drive Wizard appears.

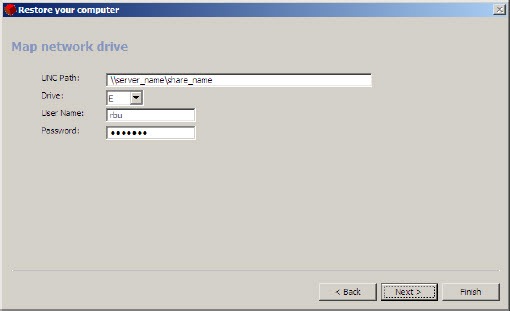

  3. Type the UNC path to the share, assign a drive letter, and enter the proper login credentials in the spaces provided.

Restoring locally

If the computer being recovered was the Retrospect backup computer, you will be using the Retrospect application on this computer to restore from a Backup Set stored on either a locally-attached device, such as a USB hard disk drive or SCSI tape drive, or on a network volume.

To restore locally:

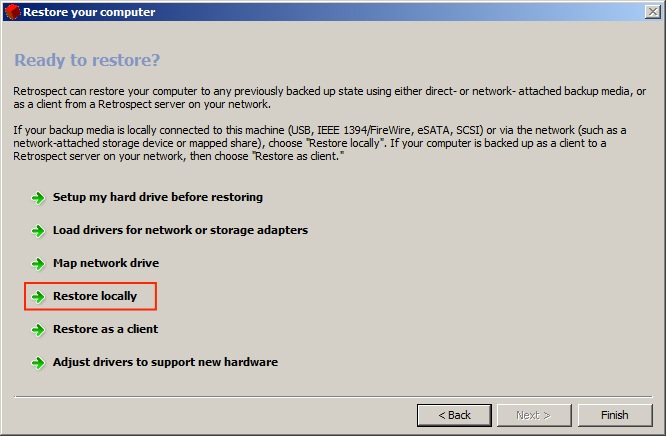

  1. Click Restore locally from the home screen of the Emergency Recovery wizard, and use Retrospect to restore the computer as described in the Restore section of Chapter 4, “Immediate Operations,” in the Retrospect User’s Guide.
  2. addendum_rug-27.jpg

    Note: When restoring the boot volume, make sure that you select a restore option that includes the registry and System State information, otherwise, the computer may not start up, and the Retrospect Emergency Recovery process will need to be repeated.

Restoring as a client

If the computer being recovered was being backed up as a client to a Retrospect server on the network, you will be restoring as a client.

To restore as a client:

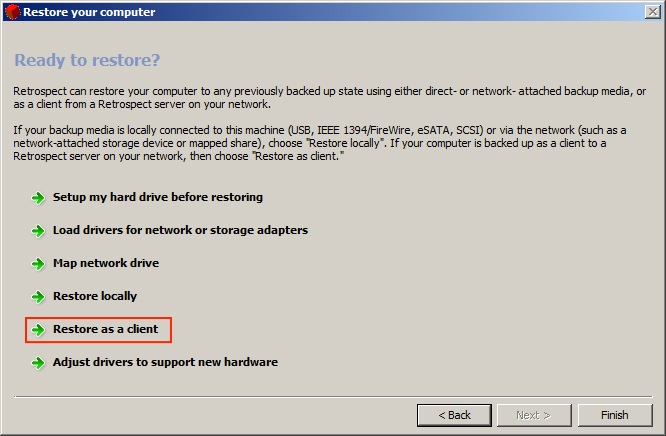

  1. Click Restore as a client from the home screen of the Emergency Recovery Wizard to initiate Retrospect Client mode.
  2. addendum_rug-29.jpg

    A screen will appear, displaying the IP address to use in order to log this computer into the Retrospect server, as described in the Working with Clients section of Chapter 7, “Networked Clients,” in the Retrospect User’s Guide.

  3. Once you have logged in this computer as a client to the Retrospect server, proceed to restore the computer as described in the Restore section of Chapter 4, “Immediate Operations,” in the Retrospect User’s Guide, selecting the client’s volumes as the destinations for the restore.

Note: When restoring the boot volume, make sure that you select a restore option that includes the registry and System State information, otherwise, the computer may not start up, and the Retrospect Emergency Recovery process will need to be repeated.

Final steps

Note: If you created your Retrospect Recovery Disc from a Retrospect application that was licensed for the Dissimilar Hardware Restore add-on, you can now adjust the restored system to support the new hardware. Do not exit the disaster recovery wizard. Instead, follow the steps in the section Making your system bootable on different hardware.

When the restore is complete, exit Retrospect (if restoring locally), eject the Retrospect Emergency Recovery Disc, and click the Finish button in the Retrospect Emergency Recovery wizard to reboot the computer. In some cases a second reboot may be required.

If a hidden Recovery Partition was present when it was previously backed up, then the Retrospect Emergency Recovery process will automatically re-partition the startup disk to match the original partition layout during the restore. This step is necessary for the computer to be able to start up properly following the restore.

If a hidden Recovery Partition was present and restored by Retrospect, you may need to adjust the hard disk partition sizes after the computer starts up normally. The most common need for this step is when a higher-capacity hard disk drive is used to replace full or failed lower-capacity hard drive. Because Retrospect must recreate the same partitioning scheme on the new drive, the extra capacity of the new drive will not be available for use until you extend an existing partition or create a new partition. Both of these tasks can be accomplished using Disk Management tool.

Making your system bootable on different hardware

Following the disaster recovery restore, you can make your system bootable on different hardware by using the Retrospect Adjust OS Wizard.

Note: This option is only present if the Retrospect Emergency Recovery Disc was created with a version of Retrospect that was licensed for the Dissimilar Hardware Restore add-on.

Before you start, make sure of the following:

  • You have drivers for the new hardware that are ready to use, and are not zipped or located in .exe files.
  • Your OS is located on the new computer, not in a backup image.

To make a Windows system bootable on different hardware:

Note: If you performed the complete restore locally using the Retrospect application, exit Retrospect now. If you performed the restore using the Retrospect Client, click the Back button. Or, if you already exited the Retrospect Disaster Recovery wizard, restart the computer; booting from the Retrospect Emergency Recovery Disc.

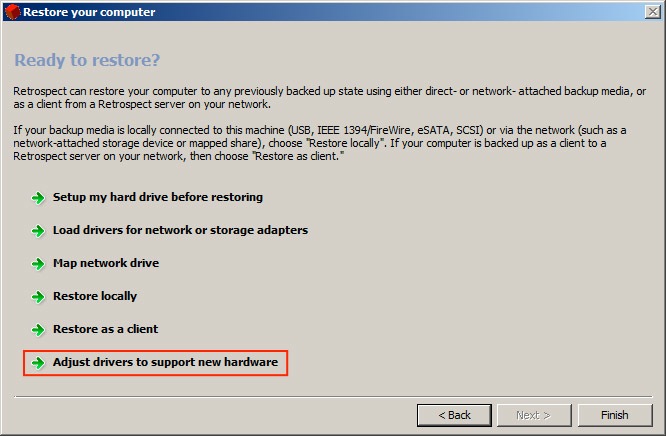

  1. Click Adjust drivers to support new hardware to launch the Retrospect Adjust OS Wizard.
  2. addendum_rug-35.jpg
  3. On the Wizard’s Welcome page, click the Next button.
  4. From the list of all found Windows systems (if there are more than one), select one that you need to adjust to the new hardware.
  5. addendum_rug-36.jpg

    If you would like to adjust them all, re-launch this wizard for each Windows system.

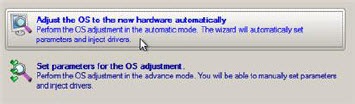

  6. Select Adjust the OS to the new hardware automatically if you do not plan to manually set any parameters for the OS adjustment.
  7. addendum_rug-37.jpg

    If you are going to manually set parameters, see "Advanced scenario specifics" for instructions on using the advanced mode.

    When you select Adjust the OS to the new hardware automatically, the wizard will automatically begin executing the adjustment, and a progress bar will appear.


    Note: In the event that the wizard fails to locate an additional driver repository, you may be asked to specify a path to the drivers required for some boot-critical drivers in the built-in Windows repository.

    Hardware drivers for various operating systems are commonly located on removable media (CD or DVD) that arrived with the hardware packaging. Collect all of the drivers in one folder so the wizard can automatically pick and install those required for your OS.

  8. Select Search for drivers in a specific folder.
  9. addendum_rug-40.jpg
  10. Click the link What devices have no drivers? at the bottom of the dialog to see if your boot-critical device does not require drivers.
  11. The wizard will name all devices according to their model description.

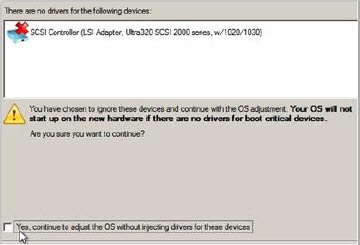

    Caution: It is strongly recommended that you do NOT select the option Yes, continue to adjust the OS without injecting drivers for these devices. Choosing this option will likely result in Windows being unable to boot on the new hardware.


    Retrospect Adjust OS Wizard will then need to locate the additional driver(s). In the event that the drivers are located on a network share, you will need to map the drive, as in the example below.

  12. Click the Add folder button to specify an additional path to the missing drivers.
  13. addendum_rug-43.jpg
  14. If the drivers are located on a network share, map the network drive by filling in the appropriate information.
  15. addendum_rug-44.jpg
  16. Enter your login credentials in the areas provided.
  17. addendum_rug-45.jpg
  18. Select the location of the driver(s).

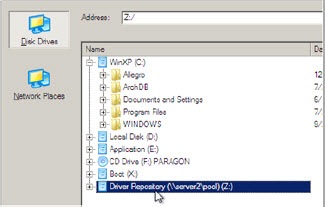

  19. addendum_rug-46.jpg

    The wizard allows you to specify several driver repositories. When the wizard has located all of the missing drivers, you will then be asked to confirm the operation.

  20. Select Yes, apply the changes physically to complete the operation.

When the operation is complete, the system will be bootable on the new hardware. After starting the system, Windows will initiate reconfiguration of all Plug and Play devices.

Advanced scenario specifics

You can use an advanced mode to manually set parameters for the OS adjustment, when prompted.

To manually set parameters for the OS adjustment:

  1. Boot your computer from the Retrospect Emergency Recovery Disc.
  2. Launch the Retrospect Adjust OS Wizard.
  3. On the Wizard’s Welcome page, click the Next button.
  4. From the list of all found Windows systems (if there are more than one), select one that you need to adjust to the new hardware.


    If you would like to adjust them all, re-launch this wizard for each Windows system.

  5. Select Set parameters for the OS adjustment.

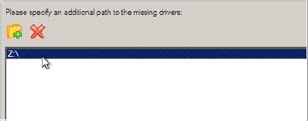

  6. Specify an additional path to the missing drivers by browsing to the location.


    You may also choose to select one of the following options at the bottom of the dialog:

    • Inject all necessary drivers from the provided driver repository — Check this option to force injection of all drivers for your devices from the given driver repository, even if there are already installed drivers for some hardware. Use this option if you suspect that any of the installed drivers do not match your hardware.
    • Keep the latest driver version — Check this option if you want to keep the latest version of the drivers during the forced re-injection. This option is only available when the Inject all necessary drivers... option, above, is selected.

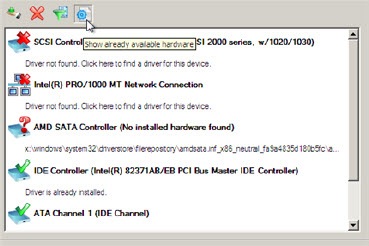

  7. View all found hardware devices and their driver status by clicking the Hardware Status button.
  8. addendum_rug-52.jpg

    The Adjust OS Wizard names all devices according to their model description.

  9. Compare the listed devices with the given hardware to make sure the wizard has analyzed your system correctly.

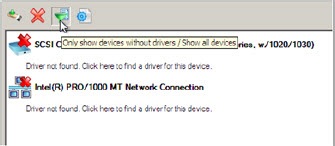

  10. Filter your devices without drivers by clicking the Filter button.
  11. addendum_rug-53.jpg

    You can use this option to view and inject drivers for network cards, as opposed to automatic mode where only boot-critical devices (i.e. storage controllers) without drivers are being reported.

  12. Add a driver for each device that is missing one by clicking on the device, then browsing for the required location.

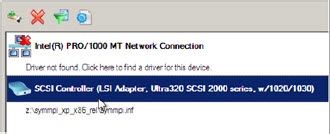

  13. The Retrospect Adjust OS Wizard will then match the device with the drivers in the given location, and select the right one.

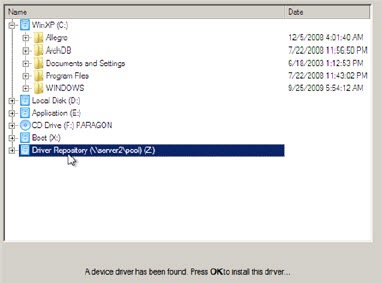

  14. When the device driver has been found, click OK to install it.
  15. addendum_rug-55.jpg

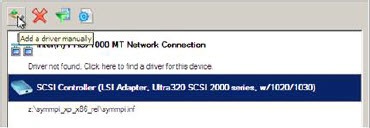

  16. You can manually add a driver for a device that has not been found by the Adjust OS Wizard by clicking the Manual Driver button.
  17. addendum_rug-56.jpg

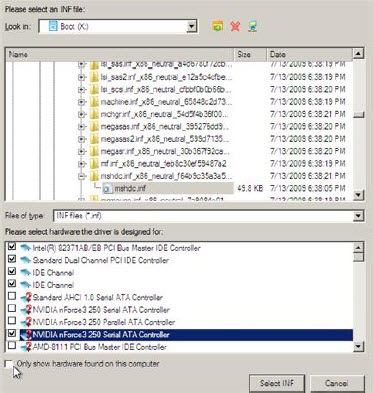

  18. Specify the required .INF file by navigating to the appropriate location, selecting the .INF file, then selecting the corresponding hardware from the list.
  19. Click the Select INF button.
  20. addendum_rug-57.jpg

    Note: Use the Only show hardware found on this computer option to show/hide driver records for hardware.

  21. You can remove a driver for a device which has not been found on your system by selecting it from the device list, then clicking the Remove button.
  22. addendum_rug-59.jpg
